Navetta 30

Make: Customline | Lenght: 28,43 [m] - 93 ft 3 in | Pax: 20

Contact us for pricing

The Navetta 30 is the new superyacht in the Custom Line displacement range that marries comfort and safety with personalisation and seaworthiness. Her groundbreaking design is bristling with the explosive energy of a true masterpiece, with a paradigm that defines the state of the art on a quest for absolute wellbeing for owner and guests. At 28.43 m long and 7.3 m in the beam, the Navetta 30 is ambitious in size but rides the waves with a gossamer elegance that speaks eloquently of liberty and grace. The Navetta 30 goes beyond the line to inscribe an entirely new one: crisp, strong, a watershed, a line of no return A living work of art that defies trends, confounds expectations and lays down a whole new language of design, a torchbearer for future generations of yachts. Classic lines meet contemporary art in an endless harmony of fluidity and poise.

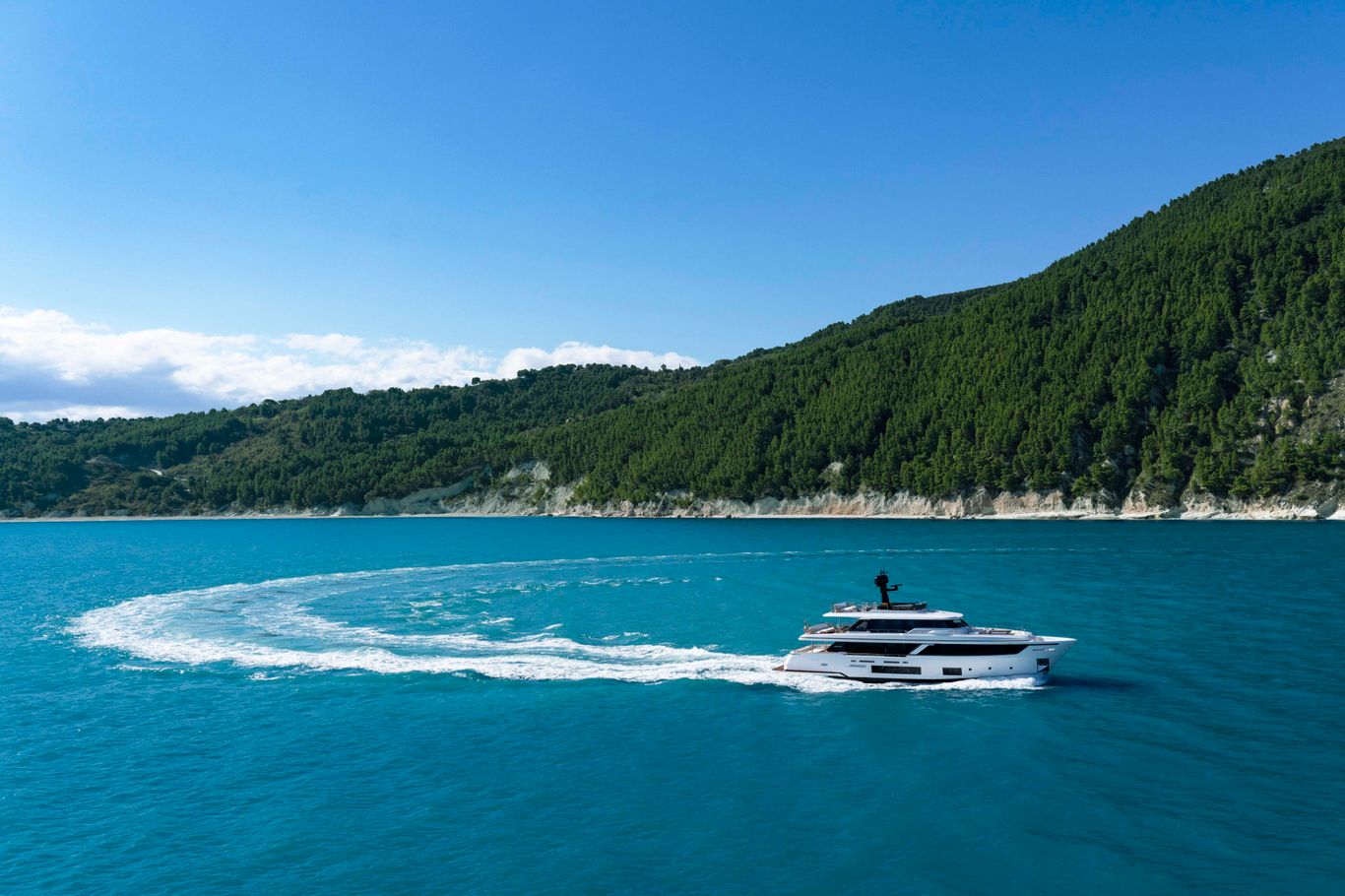

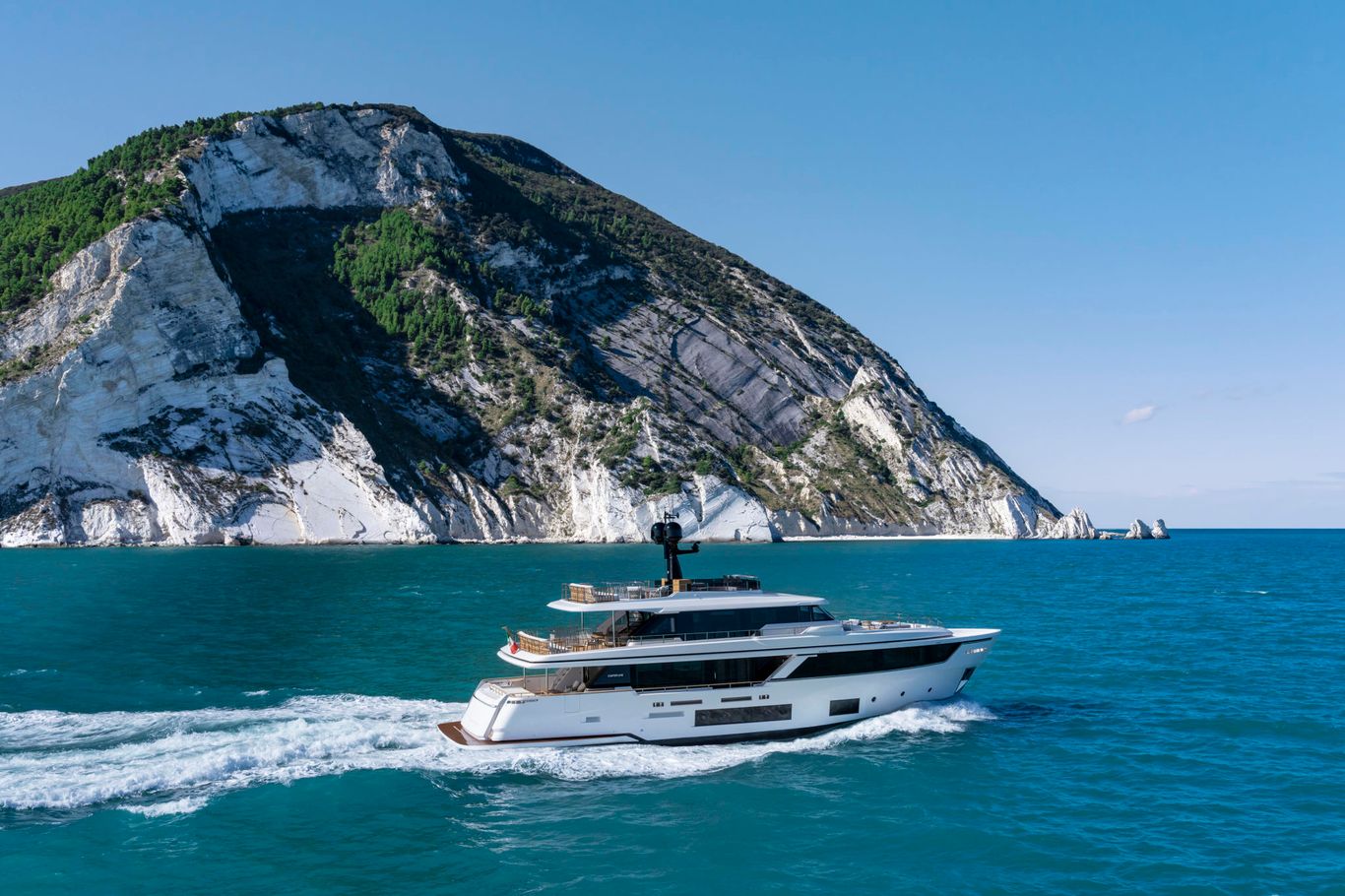

  • A sleek, white yacht Custom Line Navetta 30 gliding smoothly through the blue ocean waves.

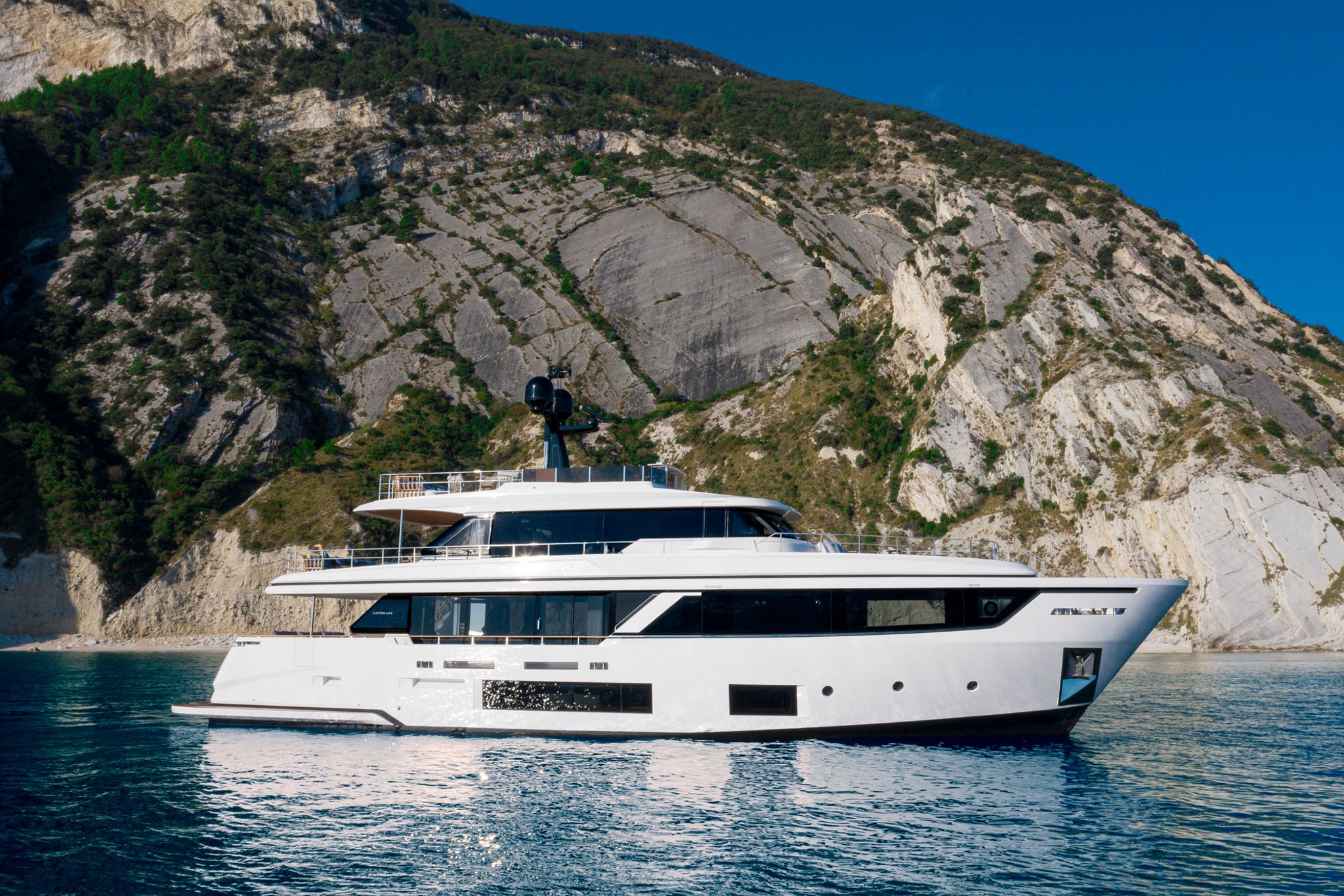

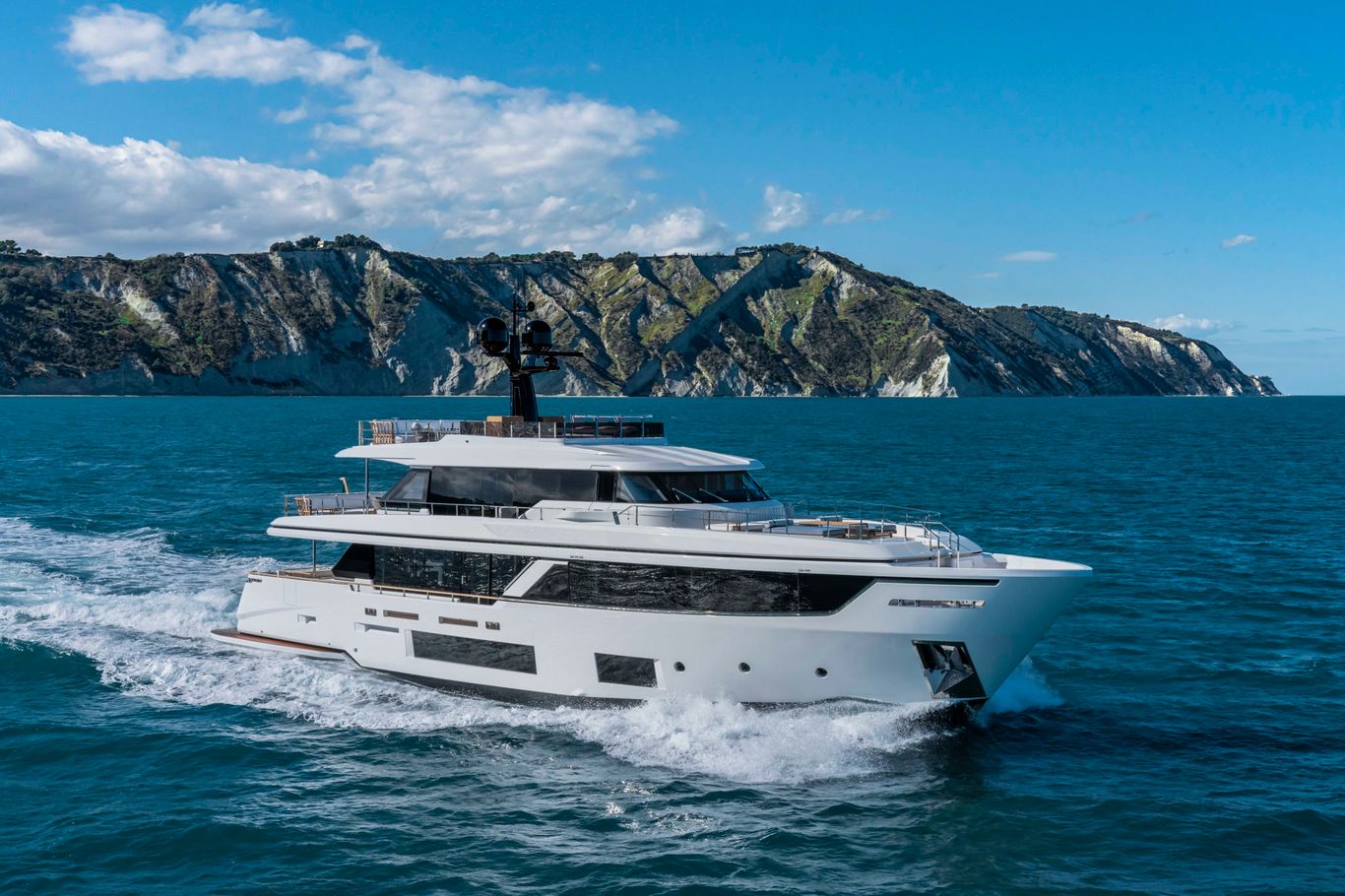

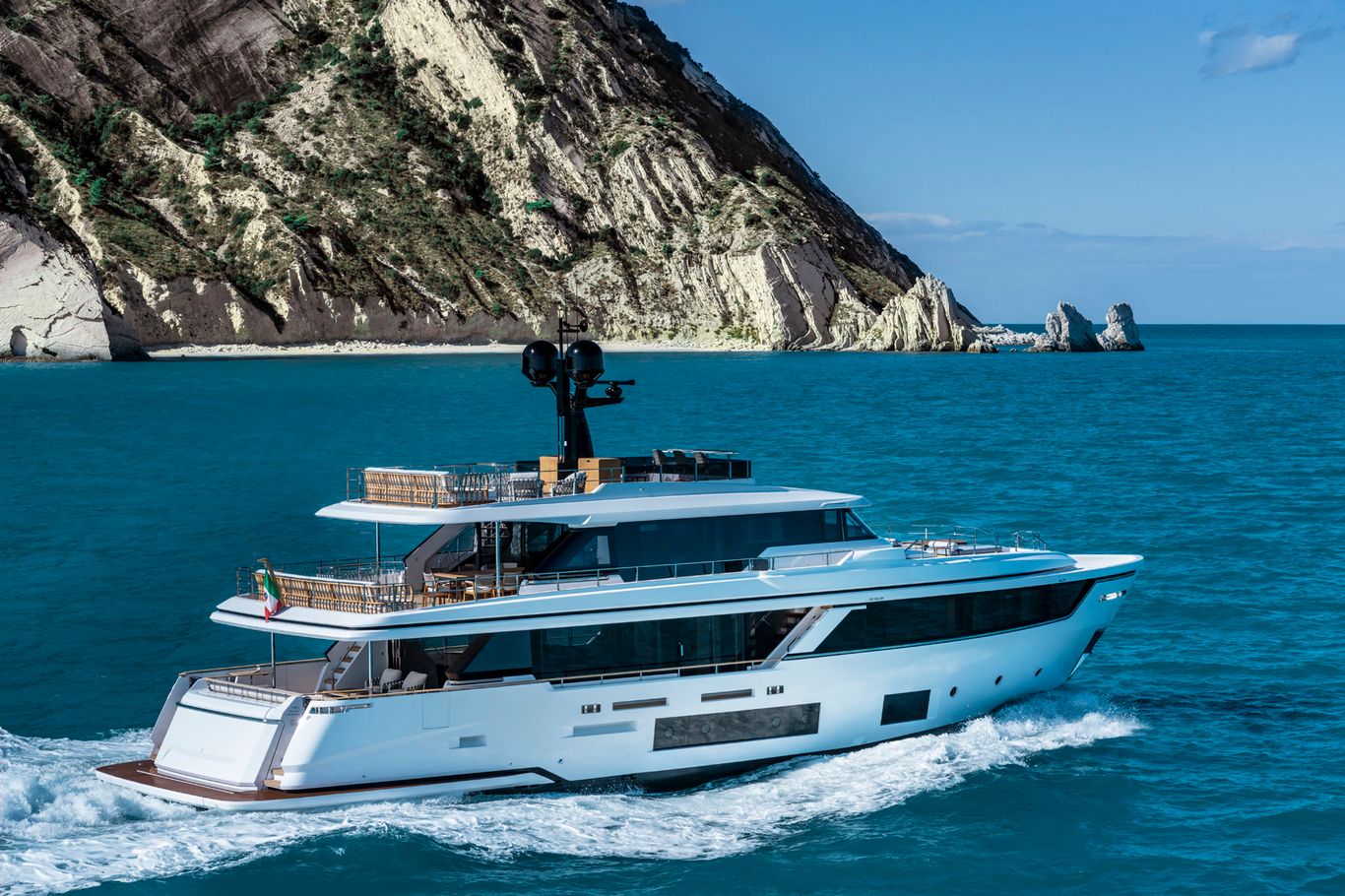

  • Custom Line Navetta 30 sailing near a rocky cliff through the deep blue ocean.

Specifications

Last update: 11/29/2023MAN V8-1000
5 cabins + 3 crew		CAT C18 – 1150
5 cabins + 3 crew
LOA28,43 [m] – 93 ft 3 in
LH23,98 [m] – 78 ft 8 in
LWL23,91 [m] – 78 ft 5 in
Max beam7,31 [m] – 24 ft 0 in
Draft2,20 [m] – 7 ft 3 in
Unladen displacement115.000 [kg] – 253,532 [lbs]
Laden displacement135.000 [kg] – 297,624 [lbs]
Fuel14.500 [l] – 3,830 [US gal]
Water2.500 [l] – 660 [US gal]
MaterialGRP
People on board20
EngineMAN V8-1000CAT C18 – 1150
Engine HP10001150
TransmissionShaft line
Max speed14.5 [kn]15 [kn]
Cruise speed13 [kn]
Economic cruising speed10 [kn]–
Range at cruising speed850 [nm]800 [nm]
Range at economic cruising speed2000 [nm]–
Cabins5
Crew cabins3 standard
Bathrooms6
Bathrooms in crew quarter3
Design CategoryA
ClassificationB + F + Aa (sound emission) RINA S.p.A.

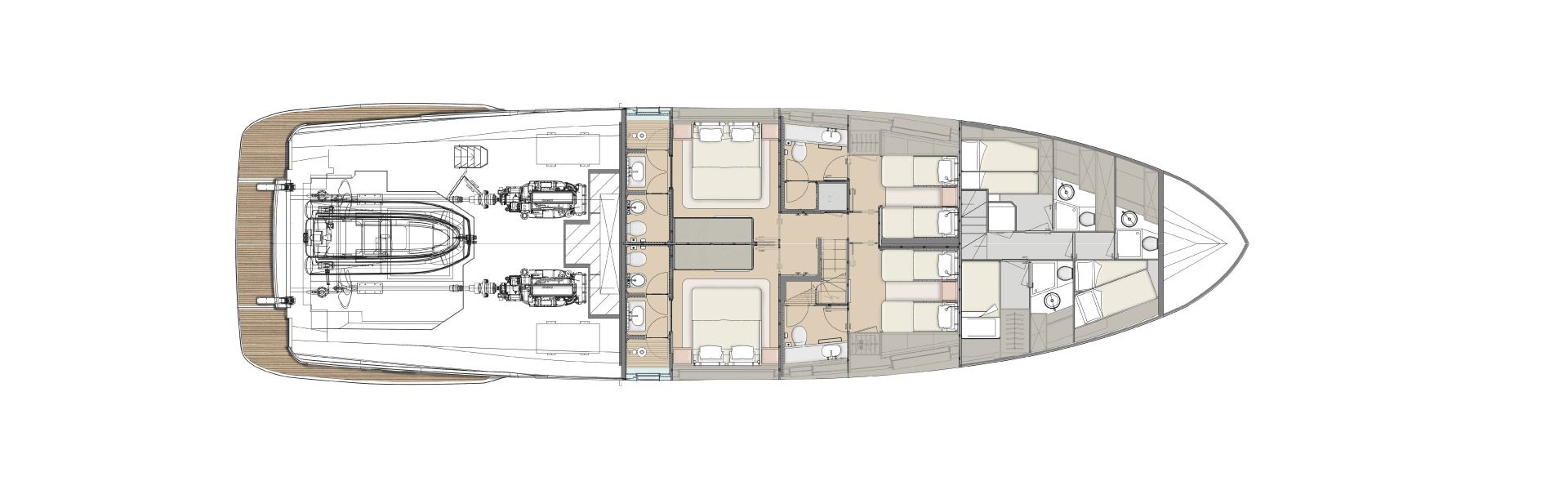

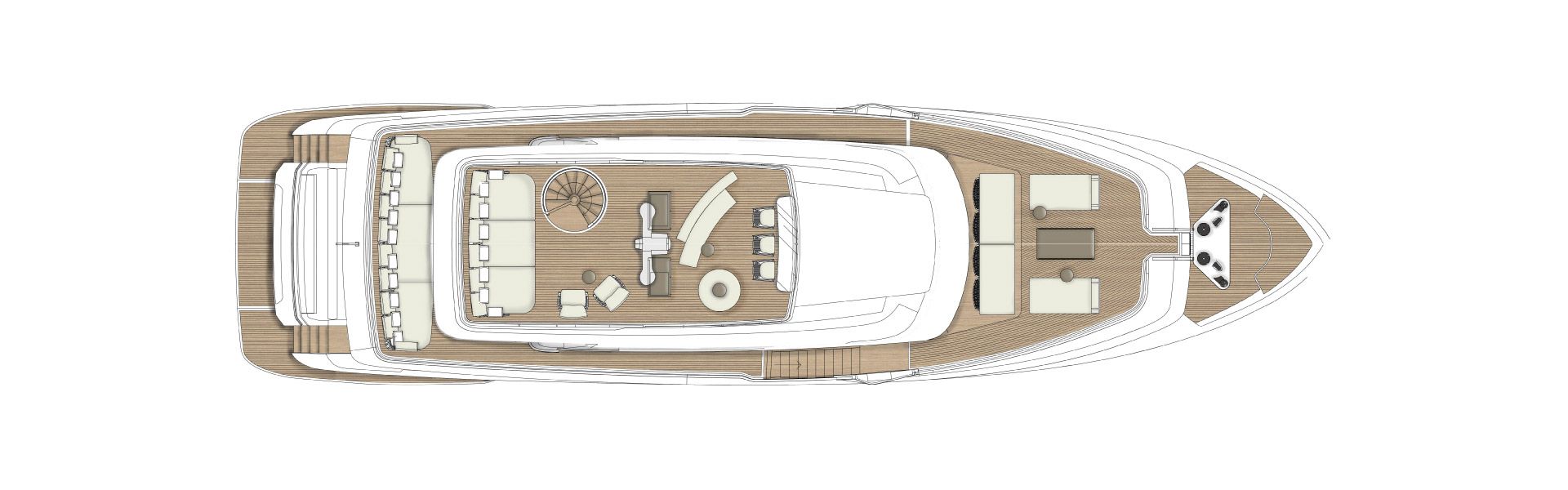

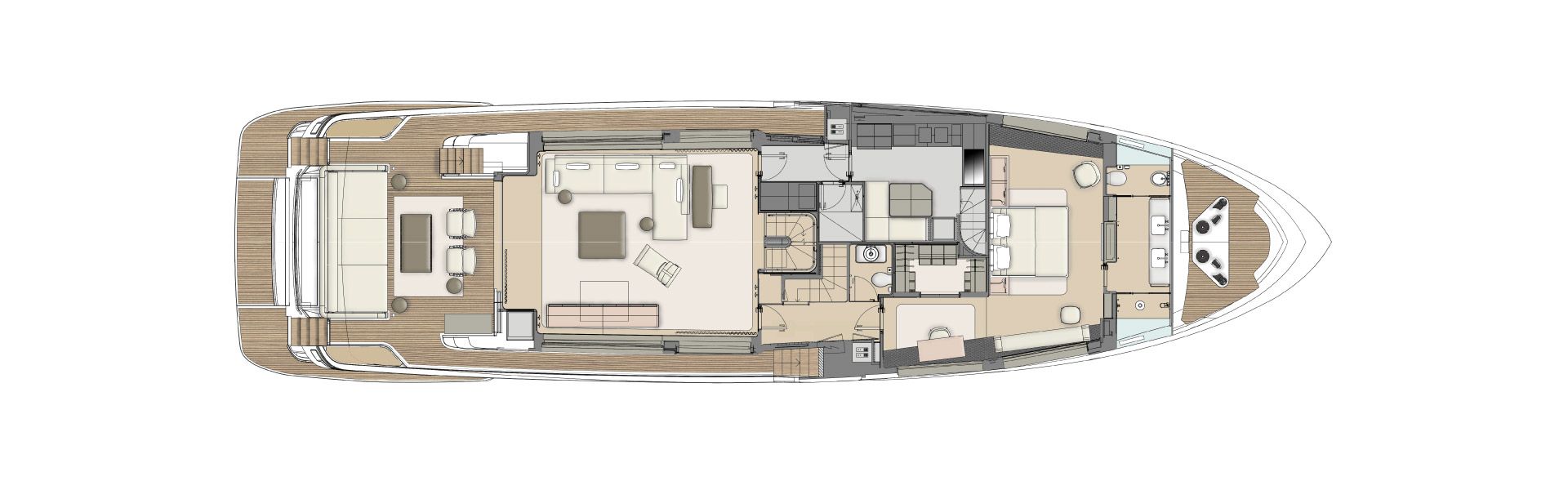

Layout
