Navetta 33

New Customline for sale

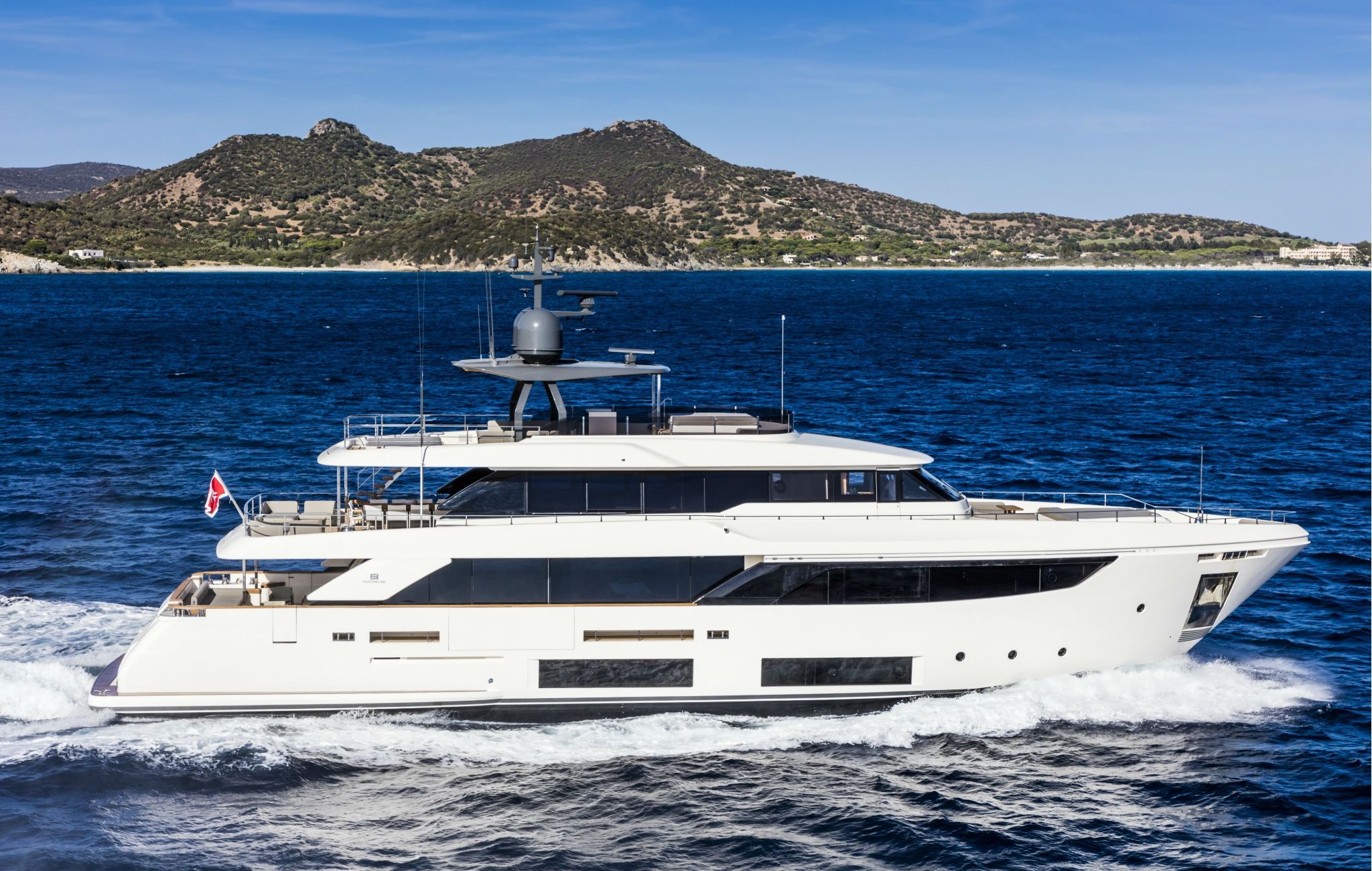

Navetta 33

Make: Customline | Lenght: 33 [m] - 108 ft 3 in | Pax: 20

Contact us for pricing

In a world that, now more than ever, is in need of beauty, the Navetta 33 exudes the subtle charm of an alluring and sophisticated diva of the waves, enticing with its beguiling blend of styles, forms and inspirations. Nothing is quite as chic as the new Custom Line semi-displacement yacht, which caters to the desires of every owner who wishes to savour the joys of sailing by making the step up from simple luxury to genuine refinement. The Navetta 33 is the product of the joint efforts of the Product Strategy Committee, headed by Piero Ferrari, along with the Group’s Engineering Department, whose architects and designers worked on the interior design, and Zuccon International Project, which was responsible for the exterior design. This yacht (108.3 ft.) introduces considerable technical advances to the line, which serve to complement the innovations that have already been admired in previous Custom Line models. For instance, the hull features a bulbous forward section and delivers performance at the top of its class in terms of seaworthiness and stability, with a range of up to 2,000 nautical miles at economical cruising speed. In addition, yacht owners and their guests can make the most of marvellous spaces across all 4 decks: from the wide-body master suite forward on the main deck, to the 4 guest cabins on the lower deck. The Navetta 33 furthermore features all of the technical innovations presented on Custom Line’s latest models: the patented DMT system for optimum use of the stern area; VOTIS software for flexible, practical management of the infotainment systems on board; and an integrated helm station, for completely safe sailing and monitoring of the systems and equipment on board. Absolute comfort is also guaranteed in terms of stabilisation when at anchor and when mooring, thanks to electro-hydraulic stabilising fins with zero speed mode, in addition to, on the first unit, two Seakeeper gyroscopic stabilisers.

Specifications

Last update: 11/29/2023MAN V12 LE446 – 1400 CR
5 cab + 5 crew
MAN V12 LE456 – 1650 CR
5 cab + 4 crew
CAT C32
5 cab + 5 crew
LOA33 [m] – 108 ft 3 in
LH32,93 [m] – 108 ft 0 in
LWL28 [m] – 91 ft 10 in
Max beam7,52 [m] – 24 ft 8 in
Draft2,18 [m] – 7 ft 2 in
Unladen displacement160.000 [kg] – 352,740 [lbs]
Laden displacement182.000 [kg] – 401,241 [lbs]
Fuel18.700 [l] – 4,940 [US gal]
Water3.100 [l] – 819 [US gal]
MaterialGRP
People on board20
EngineMAN V12 LE446 – 1400 CRMAN V12 LE456 – 1650 CRCAT C32
Engine HP140016501622
TransmissionShaft line
Max speed15 [kn]16 [kn]
Cruise speed12 [kn]
Economic cruising speed10 [kn]
Range at cruising speed1200 [nm]1150 [nm]
Range at economic cruising speed1850 [nm]
Cabins5
Crew cabins4
Bathrooms6
Bathrooms in crew quarter3
ClassificationRINA Class Certificate for Pleasure Yachts, C @CM HULL, • MACH, Y, Unrestricted Navigation

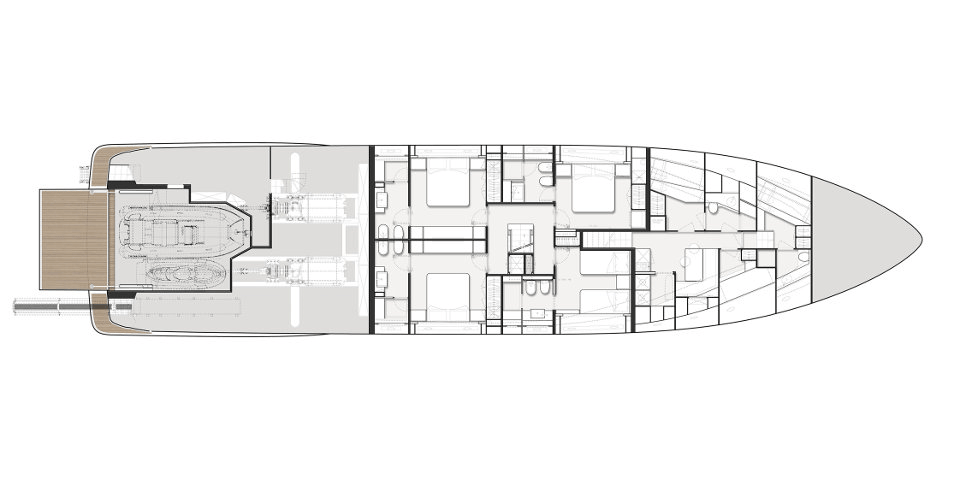

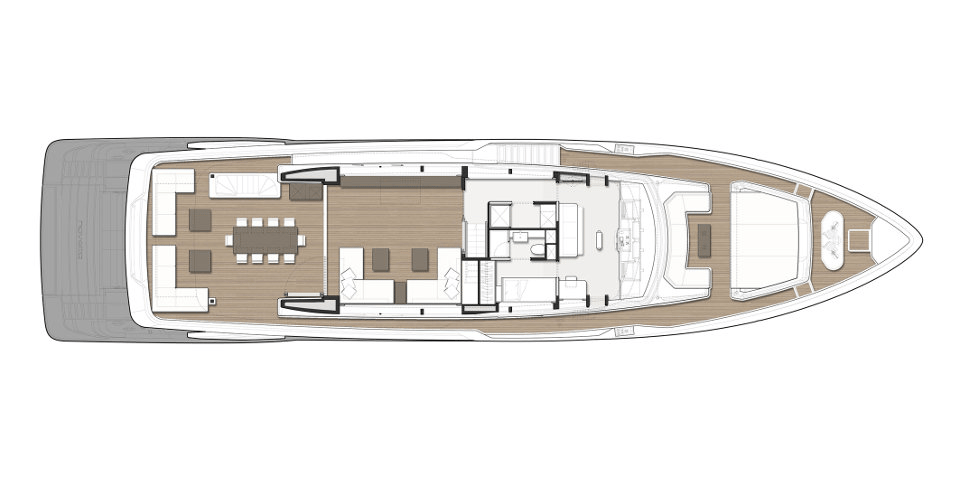

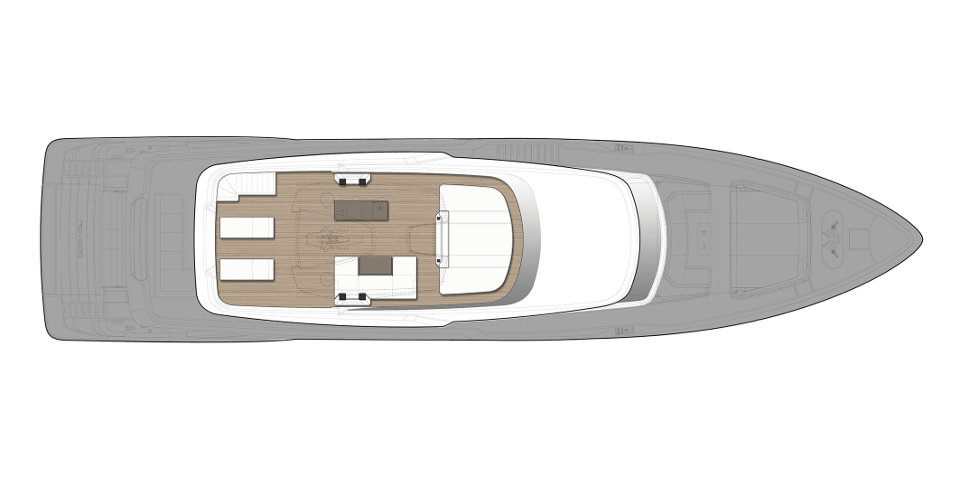

Layout

Video
